Basic profile for Tangential Knife.

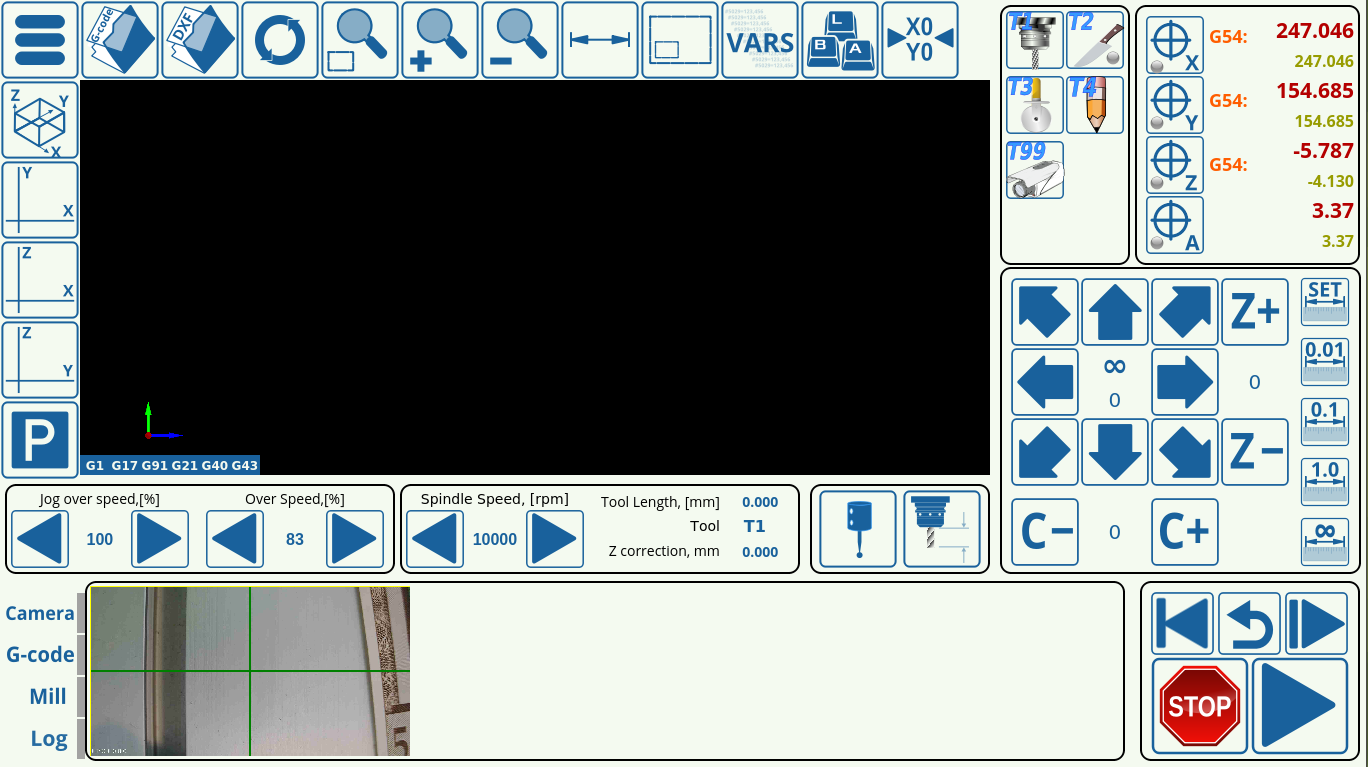

The main software screen of the 1280VK profile is presented below:
The configuration of the tangential knife profile is similar to that of a 4-axes mill profile, which can be found here. The notable differences between the two profiles lie in the addition of the following functions designed specifically for the tangential knife cutting applications. These buttons allow for easy switching between the different tools that may be part of the overall machine:
 | Switch the working tool to spindle |
 | Switch the working tool to tangential knife |
 | Switch the working tool to creasing wheel |
 | Switch the working tool to marker |
 | Switch the working tool to camera |
