mycnc_price_list
NOTE: For manufacturers and regular customers, discounts may apply. Please reach out to us by email to find out about our discounted pricing if you are a machine manufacturer and/or a repeat customer.
Prices on this page are for general reference only. Prices subject to change without notice.
| myCNC Price-List | ||||
|---|---|---|---|---|
| Art.# | Description | Dealer (USD) | Retail (USD) | |
| CNC Control boards | ||||

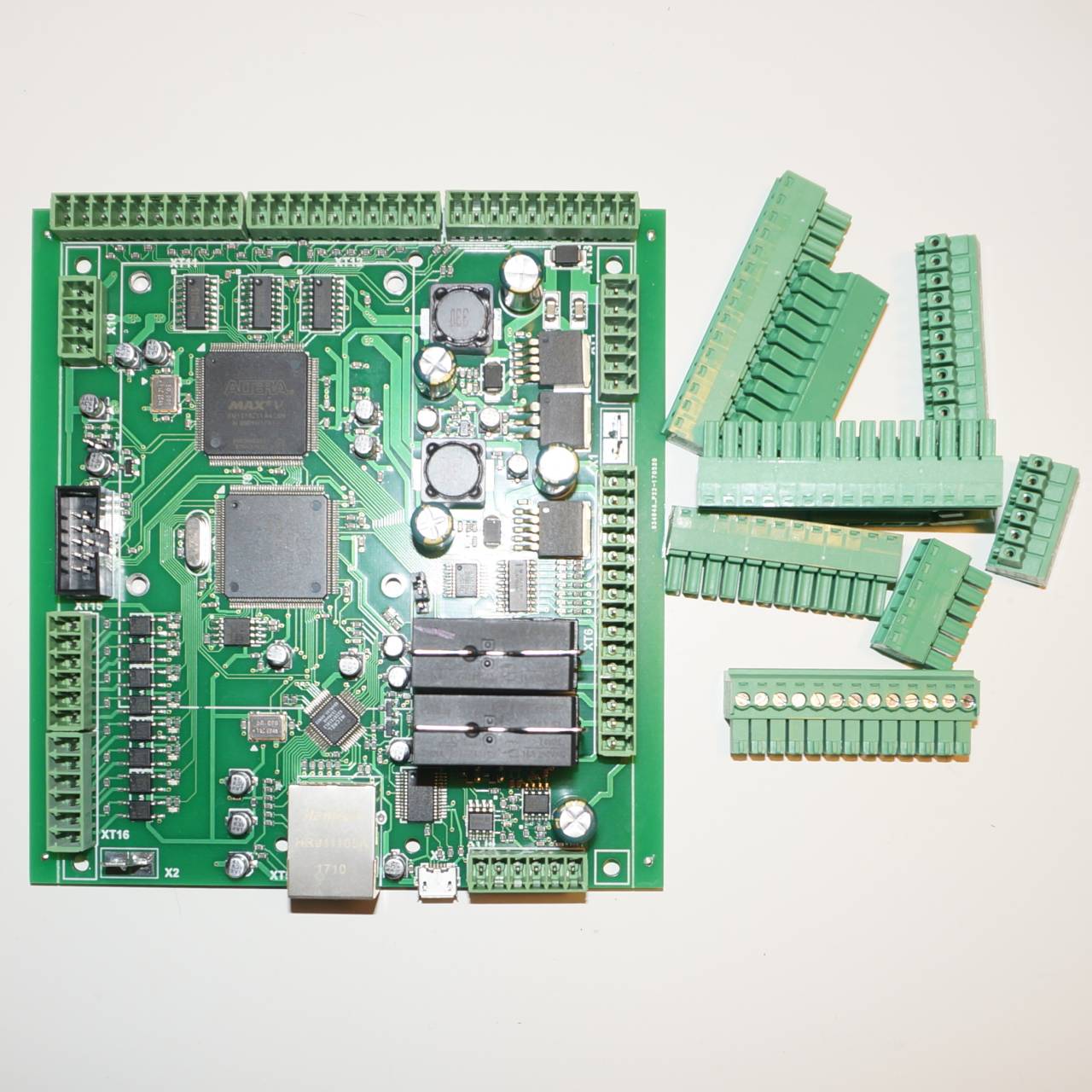

| CNC-ET6R1C | CNC Control board ET6, connectors.  * 6 axes motion control (pulse-dir 3MHz) * 8x galvanic isolated inputs * 2x relay outputs * 2x open collectro outputs * 3x open collector PWM outputs * RS485 Modbus * 10V DAC output | ***** | ***** | |
| CNC-ET7R2C | CNC Control board ET7, connectors.  * 6 axes motion control (pulse-dir 3MHz) * 16x galvanic isolated inputs * 3x incremental encoder (AB) inputs * 5x relay outputs * 11x open collector outputs * 3x open collector PWM outputs * 2x 0-11V galvanic isolated ADC inputs (THC control) * 6 0-5V ADC inputs * RS485 Modbus * 10V DAC output optional keypad panel (21 keys, 2x rotary encoders, double axes resistive joystick) | ***** | ***** | |
| CNC-ET7KEY1 | ET7 Keypad panel board.  Keypad contains * 21 keys, * 2x rotary encoders, * double axes resistive joystick (optional) | ***** | ***** | |
| CNC-ET10R2C | CNC Control board ET10 (assemble of ET10 control board, ET10BB breakout), connectors.  * 6 axes motion control (closed loop analogue +-10V or pulse-dir 3MHz), * 48x galvanic isolated inputs, * 6x incremental encoder inputs (4x ABC, 2x AB encoders), * 24x open collector outputs, * 4x open collector PWM outputs, * 8x ADC inputs (5V range, 1x differential inputs), * 2x RS485 Modbus, * 6x +/-10V DAC | ***** | ***** | |
| CNC Control Kits | ||||
| 0PC-ET6R1C | ET6 based CNC Control kit (ET6, SBC, connectors).  * 6 axes motion control (pulse-dir 3MHz), * 8x galvanic isolated inputs, * 2x relay outputs, * 2x open collector outputs, * 3x open collector PWM outputs, * RS485 Modbus, * 10V DAC output Single board computer: * Raspberry Pi 4 (4GB version), * Network, Wifi, Linux, myCNC software installed Screen, keyboard, mouse, wireless pendant are not included | ***** | ***** | |
| 15PC-ET6R1C-WP2 | ET6 based CNC Control kit (ET6, SBC, 15.6“ IPS screen, wireless pendant PHB-04B, connectors).  * 6 axes motion control (pulse-dir 3MHz), * 8x galvanic isolated inputs, * 2x relay outputs, * 2x open collector outputs, * 3x open collector PWM outputs, * RS485 Modbus, * 10V DAC output Single board computer: * Raspberry Pi 4 (4GB version), * Network, Wifi, Linux, myCNC software installed Keyboard, mouse are not included | ***** | ***** | |
| 0PC-ET7R2C | ET7 based CNC Control kit (ET7, SBC, connectors. * 6 axes motion control (pulse-dir 3MHz), * 16x galvanic isolated inputs, * 3x incremental encoder (AB) inputs, * 5x relay outputs, * 11x open collector outputs, * 3x open collector PWM outputs, * 2x galvanic isolated ADC inputs 11V range, ( for THC control) * 6x 0-5V ADC inputs * RS485 Modbus * 10V DAC output Single board computer: * Raspberry Pi 4 (4GB version), * Network, Wifi, Linux, myCNC software installed Screen, keyboard, mouse, wireless pendant are not included. | ***** | ***** | |

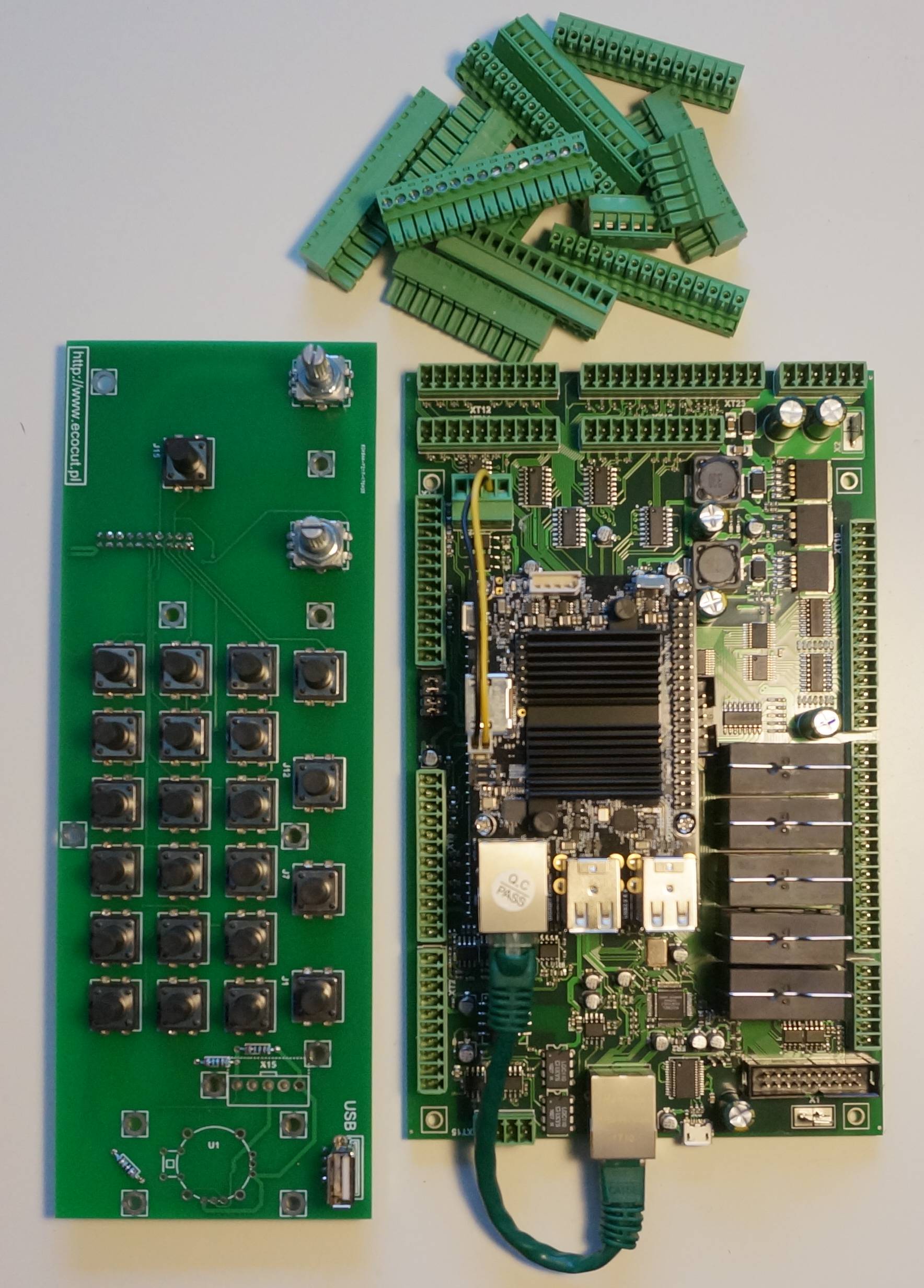

| 0PC-ET7R2C-7K | ET7 based CNC Control kit (ET7, SBC, keypad panel, connectors). * 6 axes motion control (pulse-dir 3MHz), * 16x galvanic isolated inputs, * 3x incremental encoder (AB) inputs, * 5x relay outputs, * 11x open collector outputs, * 3x open collector PWM outputs, * 2x galvanic isolated ADC inputs 11V range, ( for THC control) * 6x 0-5V ADC inputs * RS485 Modbus * 10V DAC output Single board computer: * Raspberry Pi 4 (4GB version), * Network, Wifi, Linux, myCNC software installed Screen, keyboard, mouse, wireless pendant are not included. Keypad panel has 21 keys, 2x rotary encoders, double axes resistive joystick. | ***** | ***** | |
| 15PC-ET7R2C-WP1-7K | ET7 based CNC Control kit (ET7, SBC, 15.6” IPS screen, wireless pendant PHB-02B, connectors, keypad panel board). * 6 axes motion control (pulse-dir 3MHz), * 16x galvanic isolated inputs, * 3x incremental encoder (AB) inputs, * 5x relay outputs, * 11x open collector outputs, * 3x open collector PWM outputs, * 2x galvanic isolated ADC inputs 11V range, ( for THC control) * 6x 0-5V ADC inputs * RS485 Modbus * 10V DAC output Single board computer: * Raspberry Pi 4 (4GB version), * Network, Wifi, Linux, myCNC software installed * 15.6" IPS screen with HDMI driver board * Wireless Pendant control PHB-02B Keyboard, mouse are not included. | ***** | ***** | |

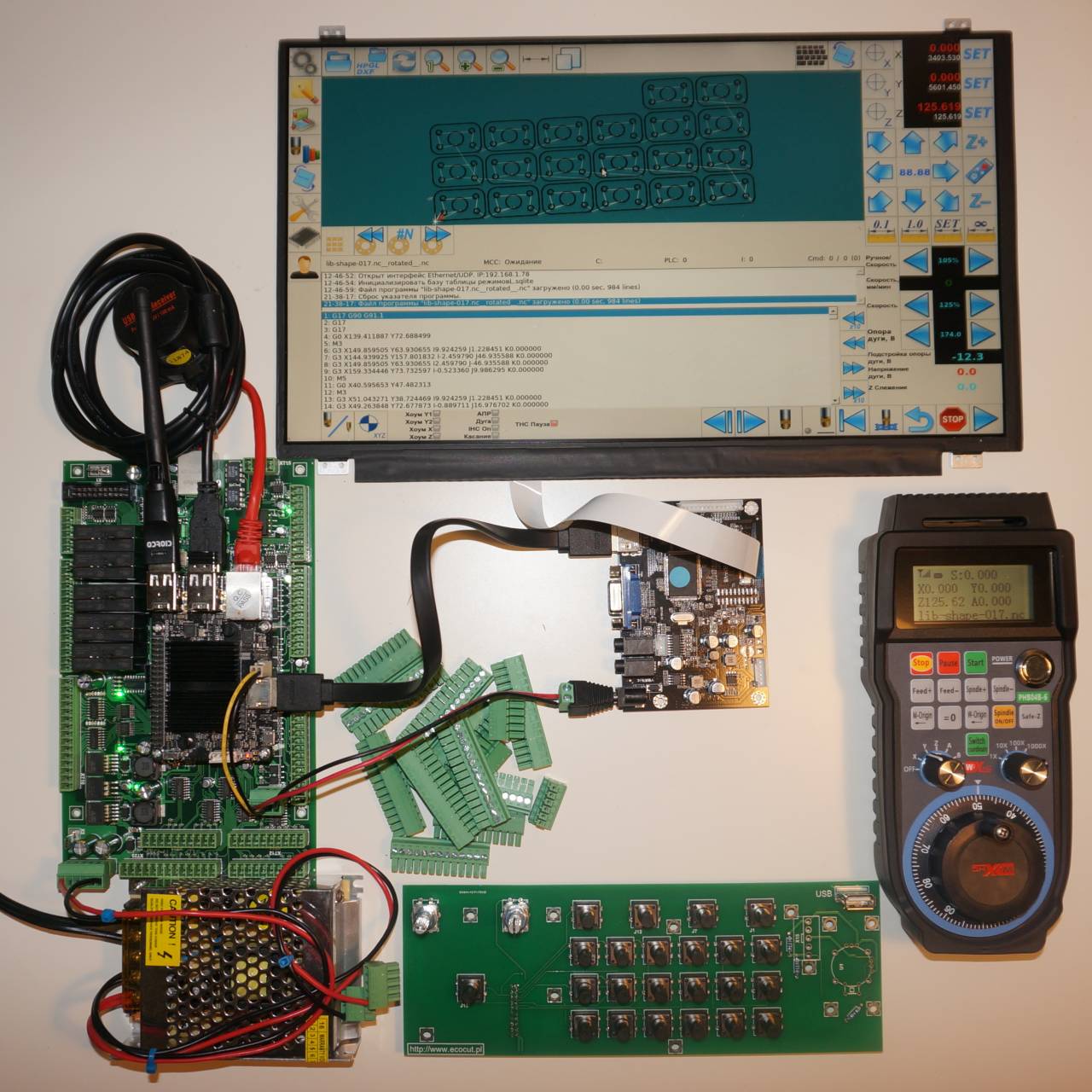

| 15PC-ET7R2C-WP2-7K | ET7 based CNC Control kit (ET7, SBC, 15.6“ IPS screen, wireless pendant PHB-04B, connectors, keypad panel). * 6 axes motion control (pulse-dir 3MHz), * 16x galvanic isolated inputs, * 3x incremental encoder (AB) inputs, * 5x relay outputs, * 11x open collector outputs, * 3x open collector PWM outputs, * 2x galvanic isolated ADC inputs 11V range, ( for THC control) * 6x 0-5V ADC inputs * RS485 Modbus * 10V DAC output Single board computer: * Raspberry Pi 4 (4GB version), * Network, Wifi, Linux, myCNC software installed * 15.6" IPS screen with HDMI driver board * Wireless Pendant control PHB-04B Keyboard and mouse are not included. Keypad panel has 21 keys, 2x rotary encoders, double axes resistive joystick. | ***** | ***** | |

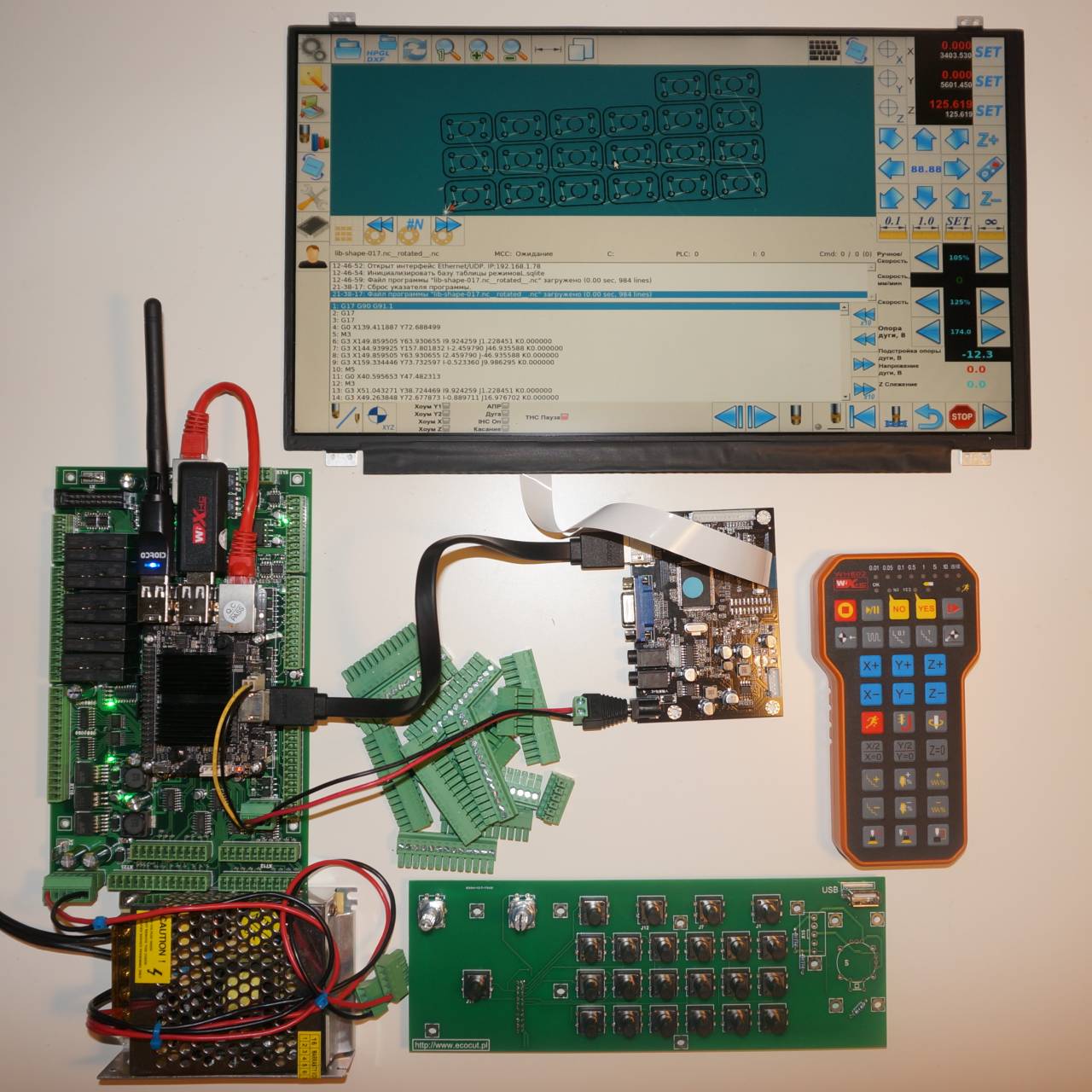

| 15PC-ET7R2C-WP3-7K | ET7 based CNC Control kit (ET7, SBC, 15.6” IPS screen, wireless pendant WHB-02, connectors, keypad panel).  * 6 axes motion control (pulse-dir 3MHz), * 16x galvanic isolated inputs, * 3x incremental encoder (AB) inputs, * 5x relay outputs, * 11x open collector outputs, * 3x open collector PWM outputs, * 2x galvanic isolated ADC inputs 11V range, ( for THC control) * 6x 0-5V ADC inputs * RS485 Modbus * 10V DAC output Single board computer: * Raspberry Pi 4 (4GB version), * Network, Wifi, Linux, myCNC software installed * 15.6" IPS screen with HDMI driver board * Wireless Pendant control PHB-04B Keyboard and mouse are not included. Keypad panel has 21 keys, 2x rotary encoders, double axes resistive joystick. | ***** | ***** | |
| 0PC-ET10R2C | ET10 based CNC Control kit, connectors set. CNC Control board ET10 (assemble of ET10 control board, ET10BB breakout), Single board computer, connectors set.  * 6 axes motion control (closed loop analogue +-10V or pulse-dir 3MHz), * 48x galvanic isolated inputs, * 6x incremental encoder inputs, (4x ABC, 2x AB encoders), * 24x open collector outputs, * 5x open collector PWM outputs, * 8x ADC inputs (5V range, 1 channel is with differential inputs), * 2x RS485 Modbus, * 6x +/-10V DAC Single board computer: * Raspberry Pi 4 (4GB version) * Network, Wifi, Linux, * myCNC software installed Screen, keyboard, mouse, wireless pendant are not included | ***** | ***** | |
