MyCNC software can be flexibly configured for a wide range of application. Complete machine configuration is stored in Profile - folder that contains all the screen configuration, machine settings, macros, PLC procedures etc.

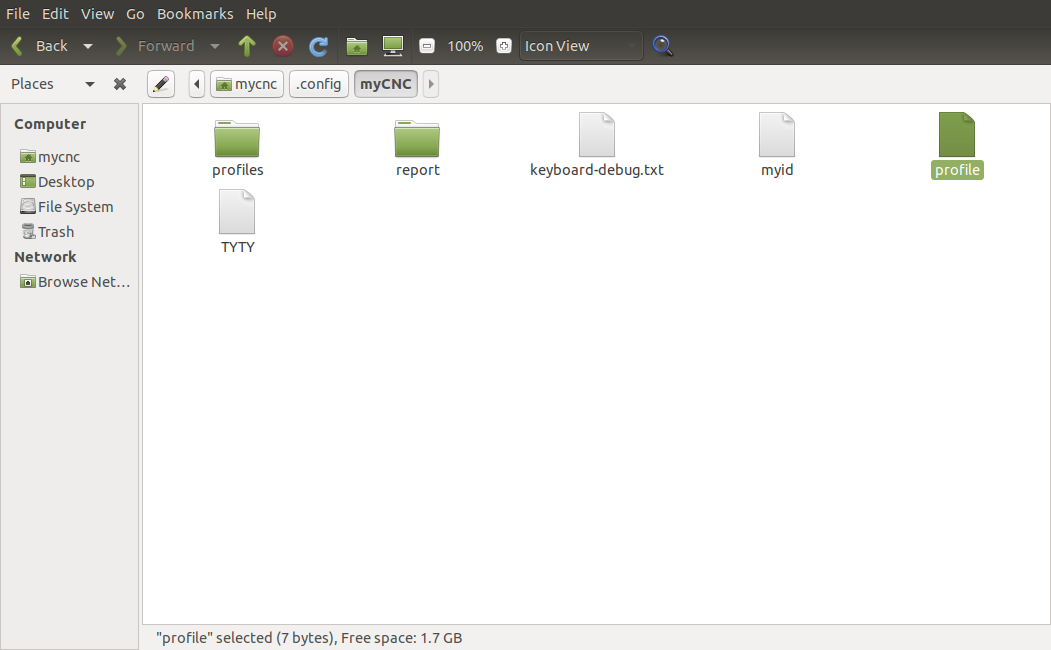

Profile folders are placed in “myCNC/profiles” folder in User configuration folder. “User configuration folder” is OS dependant folder which can be for example:
For example for Odroid-C2 mini computer we offer profiles folder are placed in -
Database file with Profiles Archive is placed in myCNC working folder in myCNC/db/profiles.sqlite file. A Full path for Odroid-C2 is
for MS Windows it can be

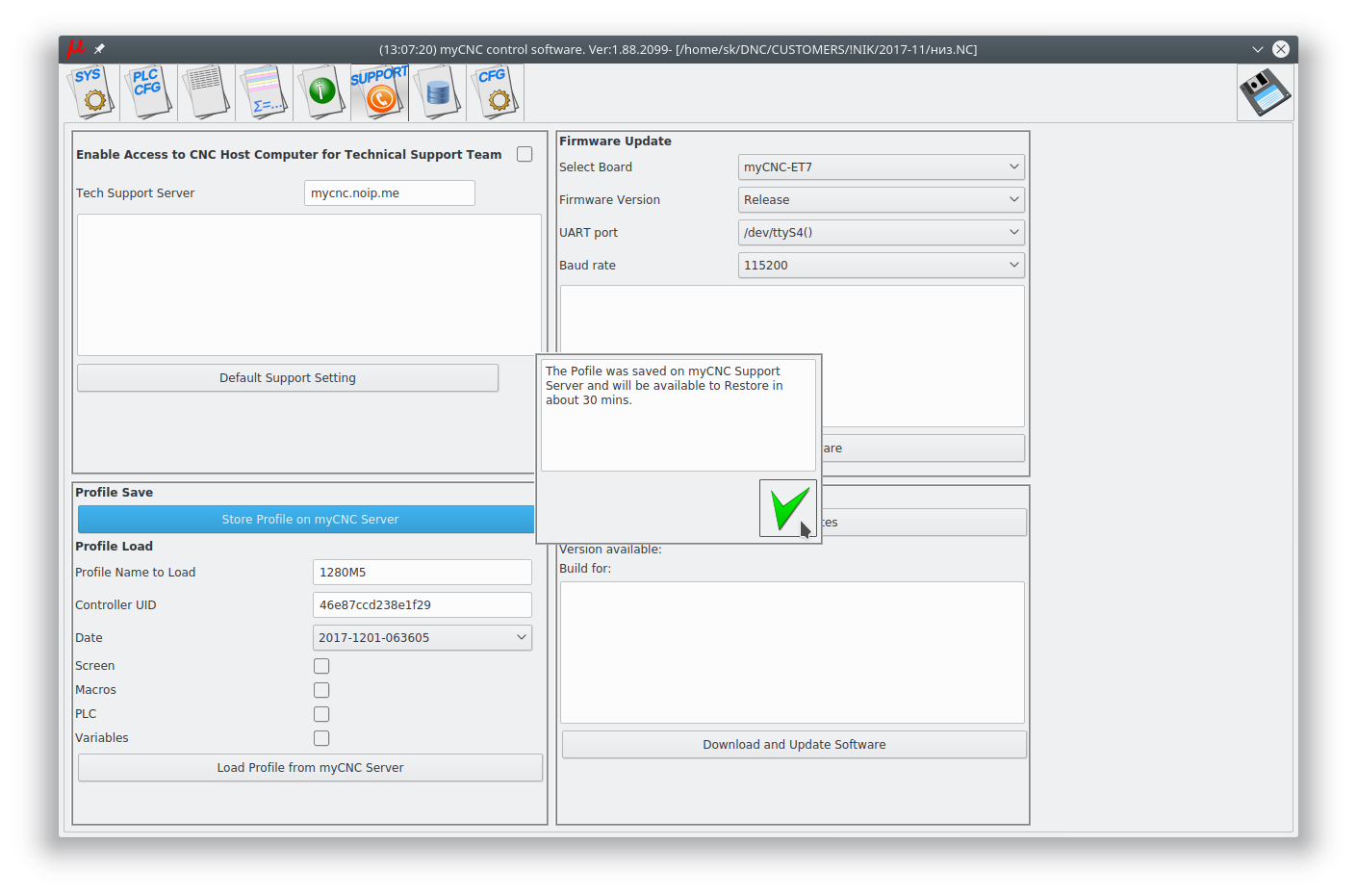

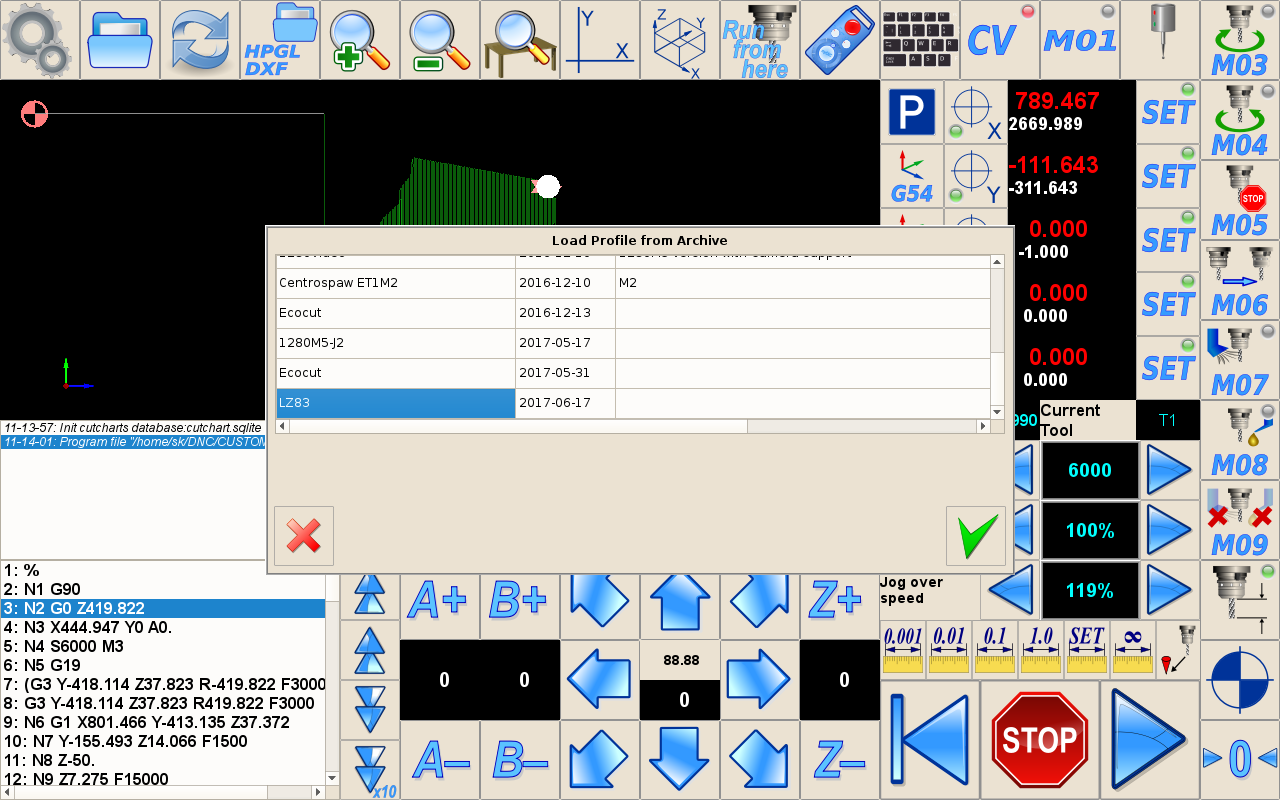

To Store Current profile snapshot on myCNC Server press button Store Profile on myCNC Server. You will get a confirmation message after the profile stored. Your profile name, controller unique ID and current date and time are stored with all profile data. You will be able to restore data exactly for your machine (pair profile-controller ID) and selected date.
Note You may wish to update your profile to the last version from your myCNC Server. 1. Updating Screen files make sense since you would get a new look of your profile 2. Updating Macros and PLC is completely up to you. You may update it if you didn't make any changes in PLC or Macros 3. !!! Never !!! update cnc-variables because you will lose all your settings data and will need to set up system again (like pulse per unit settings and other)

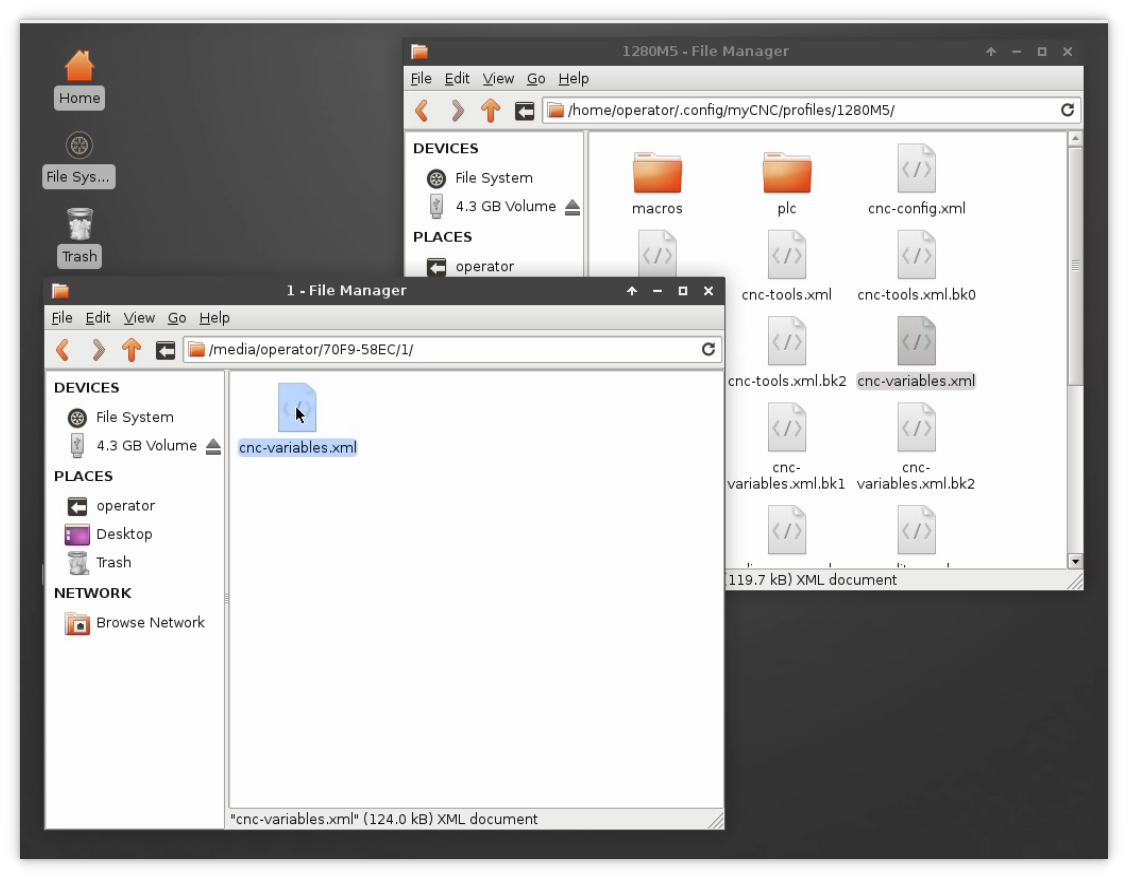

A computer uses cache memory (RAM) while saving files to increase SD cards performance. The most frequently written file is cnc-variables.xml. In case of power failure profile configuration file “cnc-variables.xml” might be damaged. To restore profile configuration you can manually copy this file to profile folder from the archive. For example,
In case there is no recently updated version of the profile you are looking for on the server, you can manually download it from the main site. Please follow the instructions below to manually update your profile to the latest available version:
1. Go to the main site's Download page and scroll down to the Profiles section, then click on the profile you would like to update and select Save

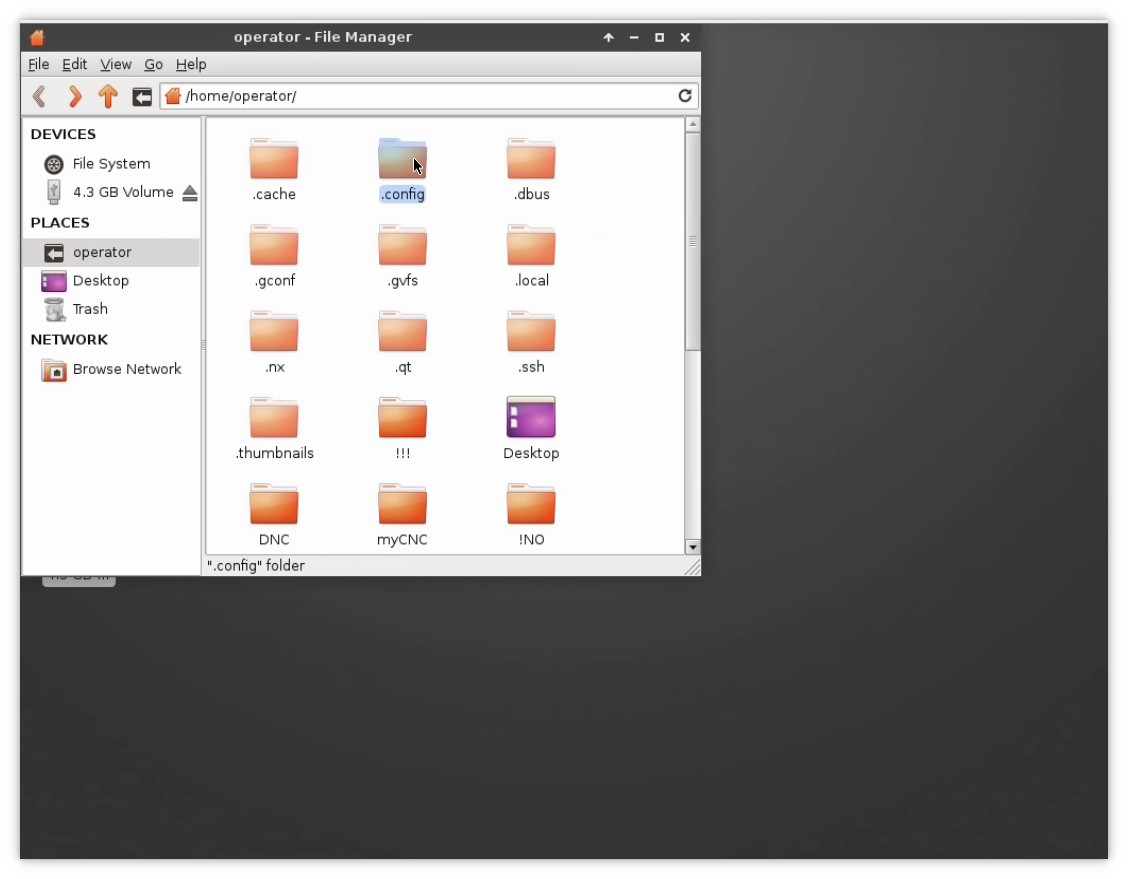

2. Copy the archive file that you have downloaded to home > .config > myCNC > profiles
3. If you would like to keep your preferences from your previous profile, go to that profile's folder and copy the cnc-variables.xml file over to your Desktop.
4. Extract the folder from the copied archive into the Profiles folder. If you want to add your previous settings from Step 3, replace the cnc-variables.xml file in your new profile folder with the one that you have copied to your desktop.
5. Relaunch myCNC software.
The manual profile update should now be complete.

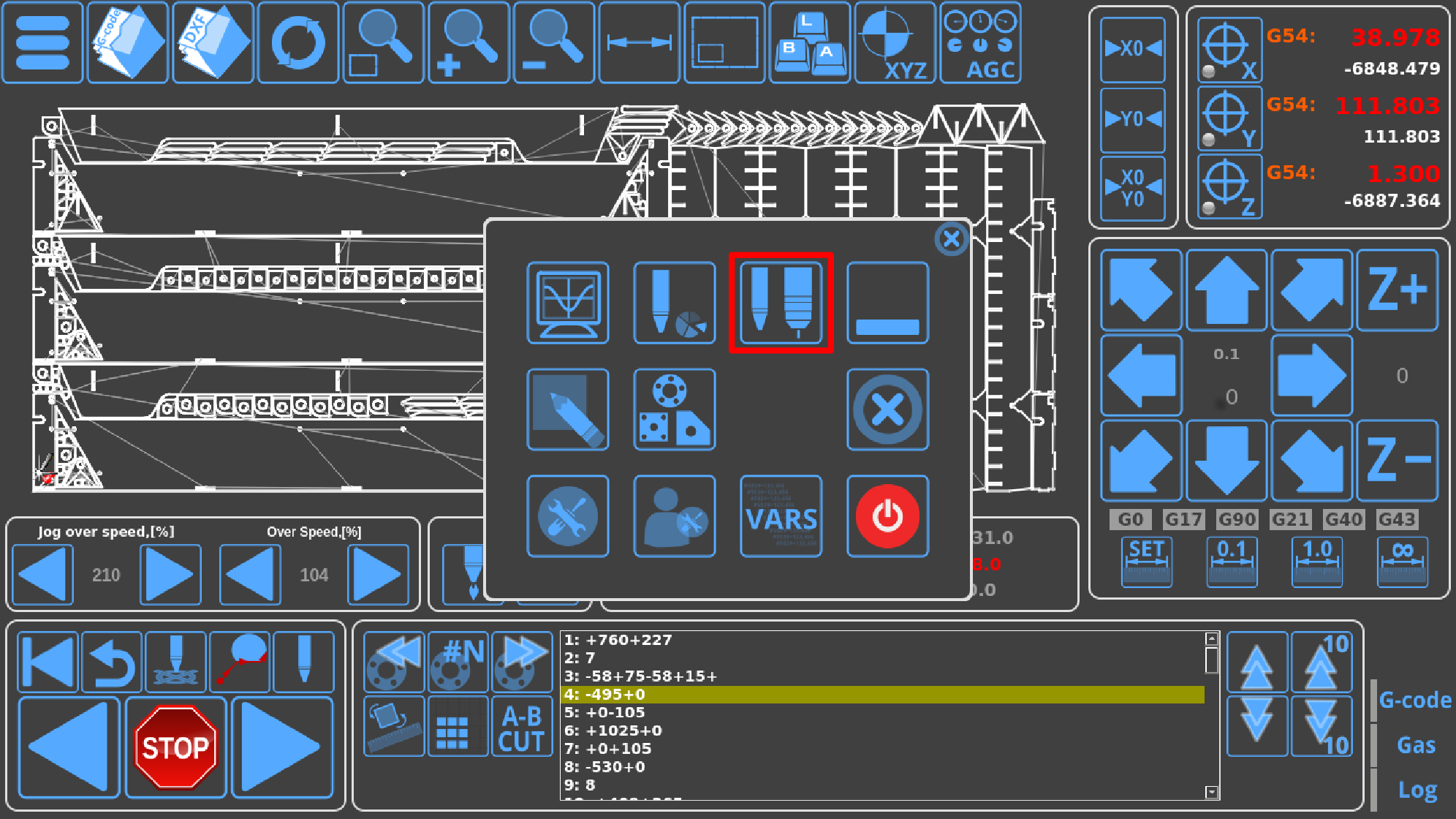

To switch between profiles via the on-screen button (for example, such as the Switch Technology button present on the X1366P plasma and X1366G gas profiles), the user can simply click from the main software screen to confirm the profile switch without having to go into the program settings.
However, the Switch Technology button only allows to switch between select profiles that must be specified by name - it is therefore necessary to properly define the profile if its name has been changed from the default (for example, when using a profile called
CustomPlasmaProfile versus the default
In order to do this, it is necessary to do a quick edit of the .xml files that contain the code for the menus for both respective profiles (in this case, our custom plasma and custom gas profiles).
CustomPlasmaProfile), locate and open the

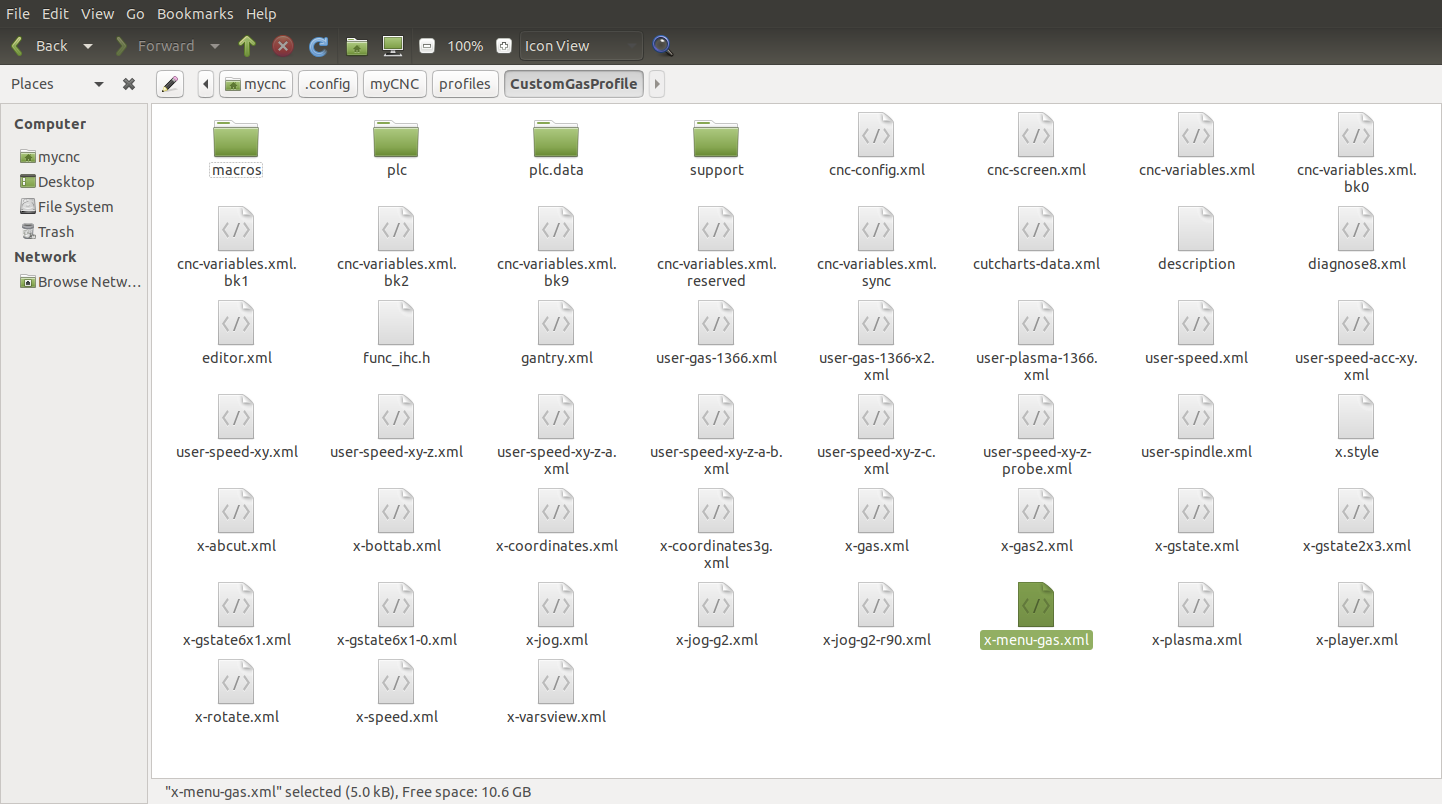

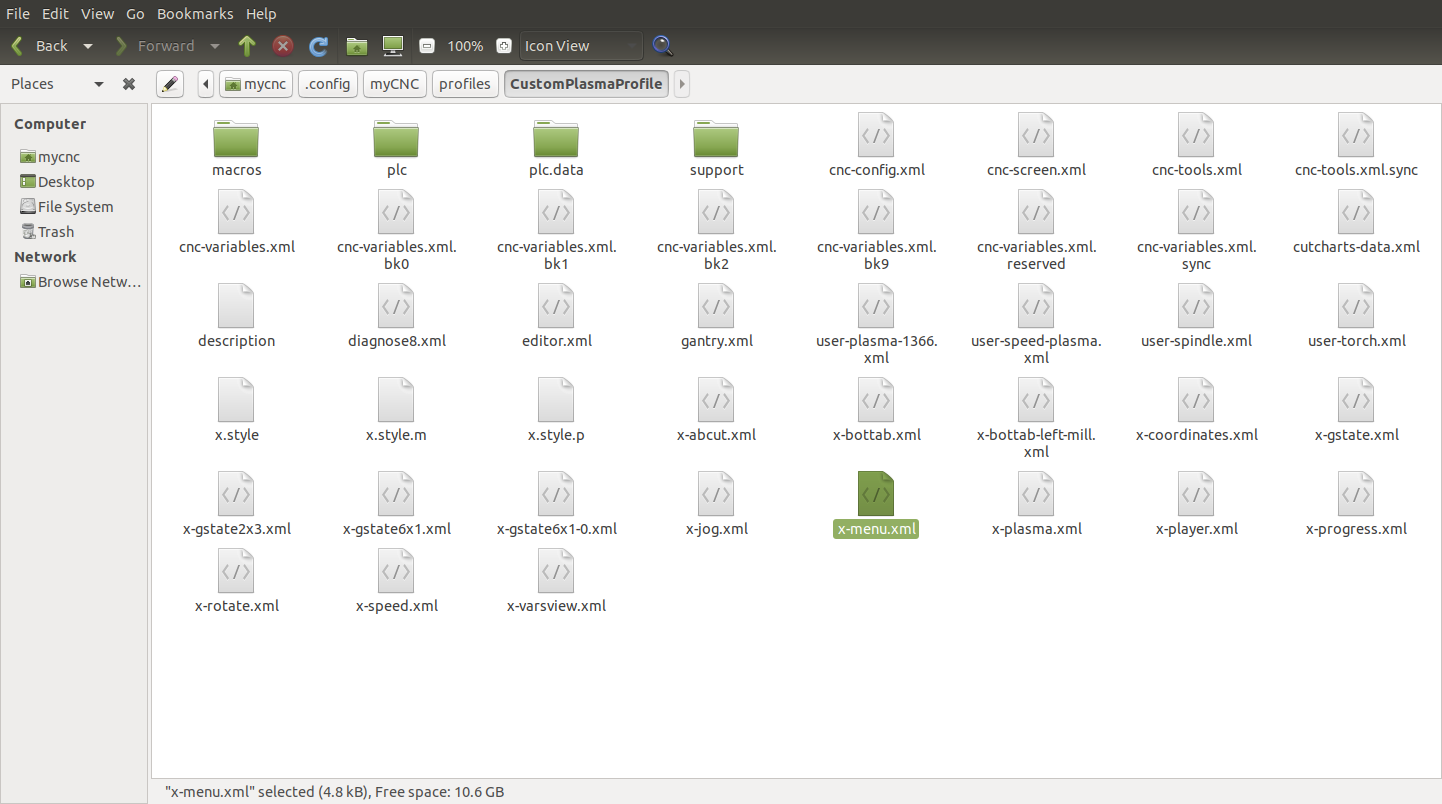

x-menu.xmlfile in a text editor of your choice (Pluma is used in this example).
CustomGasProfile) instead of
X1366G. The code would then look similar to the following:
<gitem where="x-menu" position="210;10" width="80" height="80" image="tabs/button-plasma-gas" tooltip="Switch technology (plasma/gas)" tooltip_ru="Смена технологии (плазма/газ)" hotkey="F10" action="radio-confirm:profile-change" text="CustomGasProfile;CustomPlasmaProfile" labelFontSize="14" fontSize="14" orientation="horizontal" type="button" > <confirm-message>Change Technology Profile</confirm-message> <confirm-message_ru>Сменить технологию резки</confirm-message_ru> </gitem>
CustomGasProfilein case of this example) and navigate to the
profile-changeline and change the
textfield to contain the correct names of the new profiles.
At this point, the Switch Technology button will allow for an easy switch between the profiles you have chosen:
