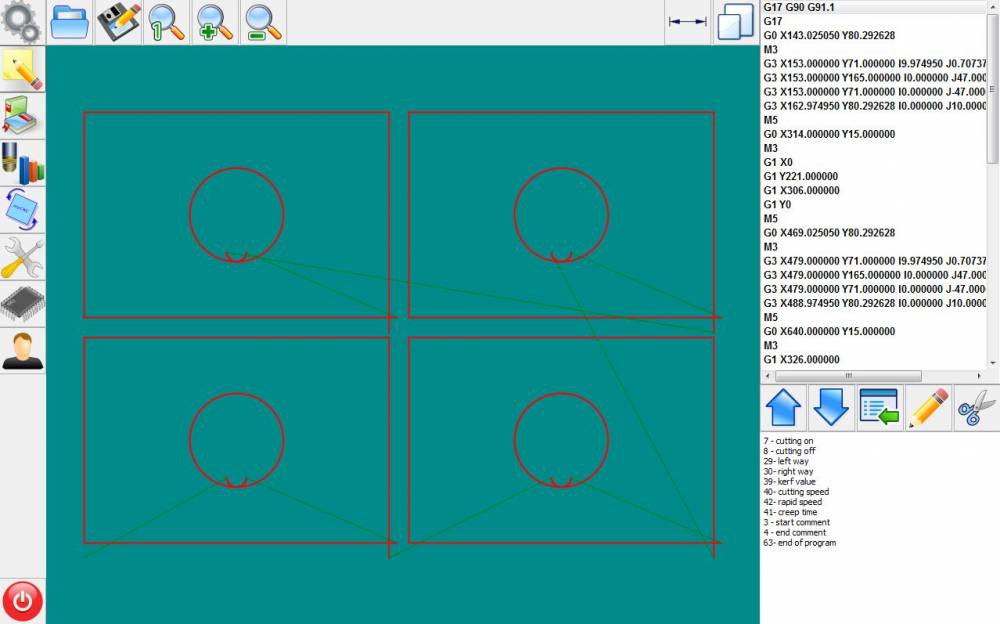

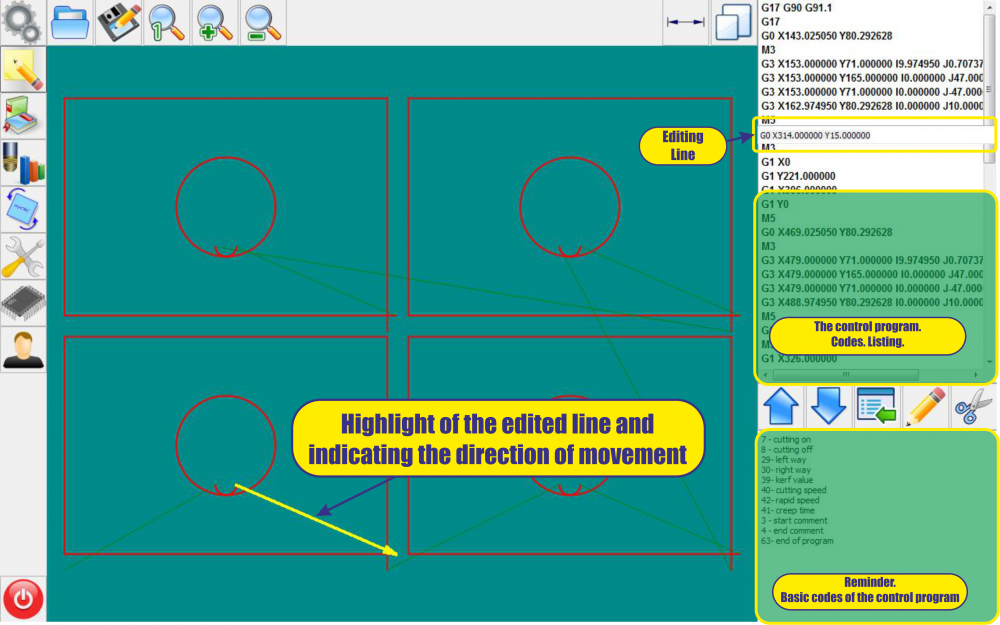

Main window of the editor of control programs

Cutting card management functions

Selecting and opening a cutting layout for editing
Saving the edited control program.
Place the control program on the whole screen.
Zoom in of the nesting chart
Zoom out of the nesting chart
Show dimensions of the nesting chart
Show work area with nesting chart

Editor Functions

Go to one line up the control program
Go to one line down the control program
Insert a new line. The insertion is performed above the selected row.
Editing the selected line
Cut the selected string to the new one.
